Nozzle Orientation Calculator is a professional engineering tool designed to calculate accurate nozzle orientation and marking dimensions for pressure vessels, storage tanks, and fabrication layouts

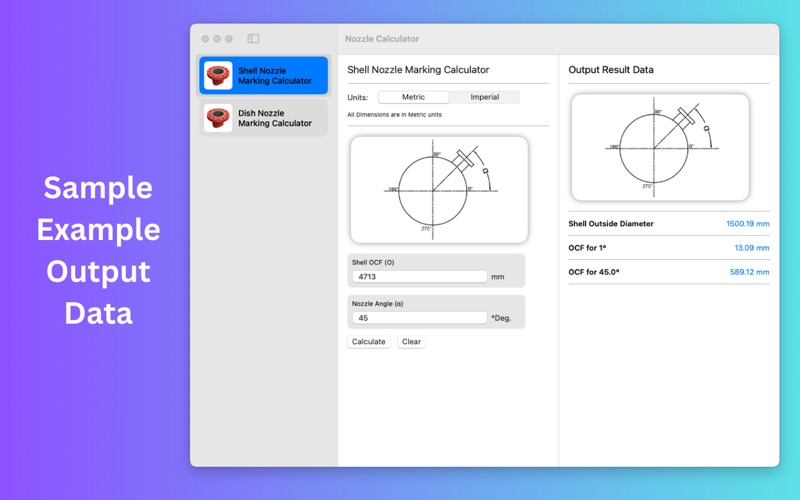

Nozzle Orientation Calculator is a professional engineering tool designed to calculate accurate nozzle orientation and marking dimensions for pressure vessels, storage tanks, and fabrication layouts. The app eliminates manual calculations and helps engineers, designers, and fabricators obtain precise results quickly and reliably. This application supports both Metric and Imperial units with intelligent internal unit conversion, ensuring consistent and accurate calculations for real-world fabrication and inspection work. Available Calculators: Shell Nozzle Orientation Calculator Dish Nozzle Orientation Calculator Shell Nozzle Orientation: This calculator is used to determine accurate nozzle marking on cylindrical shells. It calculates: Shell Outside Diameter (OD) from OCF OCF per degree OCF for any given nozzle angle These results are ideal for shell nozzle marking, layout preparation, and fabrication inspection. Dish Nozzle Orientation: This calculator is used to determine nozzle arc distance on dish ends. It supports direct crown radius input for improved accuracy and works with common dish end types: Torispherical (10%) 2:1 Ellipsoidal Hemispherical The calculator automatically adapts calculations based on the selected unit system. Smart Unit Handling: Full Metric and Imperial unit support Automatic internal unit conversion Results displayed in selected units Fractional input supported in Imperial mode Key Features: Nozzle orientation calculator for fabrication Shell and dish nozzle marking calculations Accurate arc distance and OCF calculations Supports pressure vessels and tanks Based on proven engineering formulas Clear and meaningful output values Simple and professional interface Nozzle Orientation Calculator is ideal for mechanical engineers, pressure vessel designers, fabrication engineers, QA teams, shop floor professionals, and students learning vessel layout fundamentals. This app saves time, reduces manual calculation errors, and provides reliable results for accurate nozzle positioning and layout marking.
