Dish Ends Calculator is a powerful and easy-to-use tool designed for fabrication engineers, pressure vessel designers, and mechanical professionals

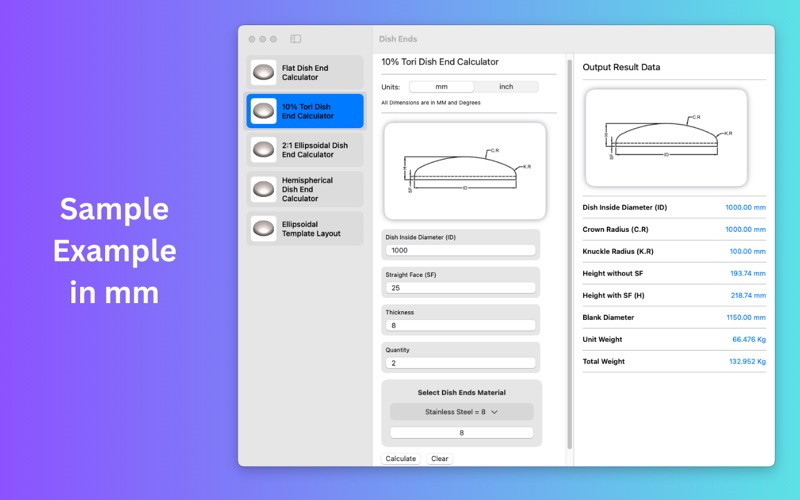

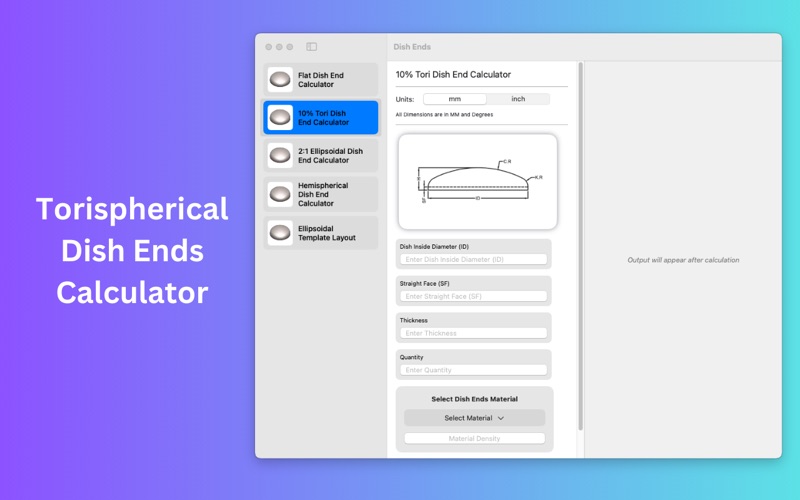

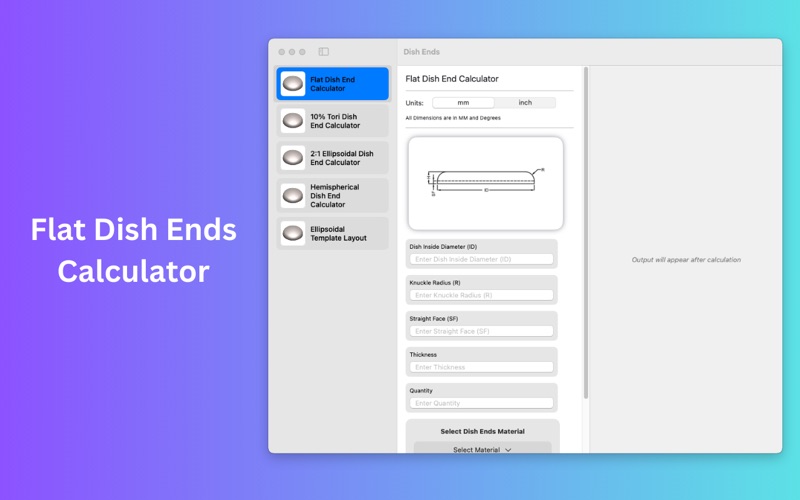

Dish Ends Calculator is a powerful and easy-to-use tool designed for fabrication engineers, pressure vessel designers, and mechanical professionals. This app helps you accurately calculate Blank Diameter, Weight, Crown Radius, Knuckle Radius, Straight Face, and Total Height for various types of Pressure Vessel Heads / Dish Ends such as Flat Heads, Torispherical Heads (F&D), Ellipsoidal Heads (2:1), and Hemispherical Heads. Whether you are working in fabrication, manufacturing, boiler design, pressure vessel engineering, QA/QC, cost estimation, or material layout planning, this tool provides quick, precise, and reliable results directly on your Mac. Key Features: 1. No Internet Required – Works anytime, anywhere, even in workshops or project sites. 2. No Annoying Ads – A clean and focused user experience. 3. High-Performance & Fast Calculations – Optimized for speed and accuracy. 4. Fabrication-Friendly Output – result values ready for marking and development. 5. Simple & Easy-to-Use Interface – Designed for both beginners and professionals. 6. User Inputs and outputs are available both mm and inches. 7. All Types of Pressure Vessel Heads and Dish Ends in One Place. Supported Dish End Types: The app includes dedicated calculators for the most commonly used vessel heads: Flat Dish End Blank Diameter Calculator Torispherical (F&D) Dish End Blank Diameter Calculator 2:1 Ellipsoidal Dish End Blank Diameter Calculator Hemispherical Dish End Blank Diameter Calculator Ellipsoidal Head Template Layout Marking Calculator Supported Pressure Vessel Heads: Flat Dish Ends / Flat Heads 10% Torispherical Head / F&D Dish Ends 2:1 Ellipsoidal Dish Ends Hemispherical Dish Ends / Hemi Heads ASME Pressure Vesse Heads. What You Can Calculate: 1. Flat Dish End Calculator Easily calculate: Dish End Height Blank Diameter Dish End Weight Based on inputs: Inside Diameter, Knuckle Radius, Straight Face, Thickness, and Material Density. Supports manual density entry or selection from material list. 2. Ellipsoidal Dish End Calculator Calculates: Crown Radius Knuckle Radius Height (with & without straight face) Blank Diameter Total Weight Just enter Inside Diameter, Straight Face, Thickness, and Material Specific Gravity. 3. Torispherical Dish End Calculator Get accurate: Crown Radius Knuckle Radius Heights Blank Diameter Weight Uses the same input process as Ellipsoidal Head Calculator. 4. Hemispherical Dish End Calculator Calculate: Radius Height Blank Diameter Weight Ideal for hemispherical pressure vessel heads. 5. Ellipsoidal Template Layout Marking Generator This tool generates: Template layout marking coordinates For faster and accurate fabrication Useful for plate cutting, segment layout, rolling, and forming. Perfect for fabrication shop engineers and layout technicians. Designed For: Pressure Vessel Fabrication Boilers & Heat Exchangers Tank Manufacturing Mechanical Engineering Structural & Industrial Fabrication Estimation & Costing On-site Engineering and QA/QC Dish Ends Material Support: You can calculate weight for multiple materials such as: Carbon Steel Stainless Steel Aluminium Brass Bronze Copper Lead And any custom material (via manual Specific Gravity input) Why Use Dish Ends Calculator? Accurate engineering calculations Faster fabrication planning Saves time in manual calculations Helps reduce material wastage Supports estimation & costing Improves accuracy in pressure vessel design.
