Transition Layout Calculator is a professional fabrication tool used to develop layout patterns for square to round, rectangular to round, round to square, and round to rectangular transition pieces

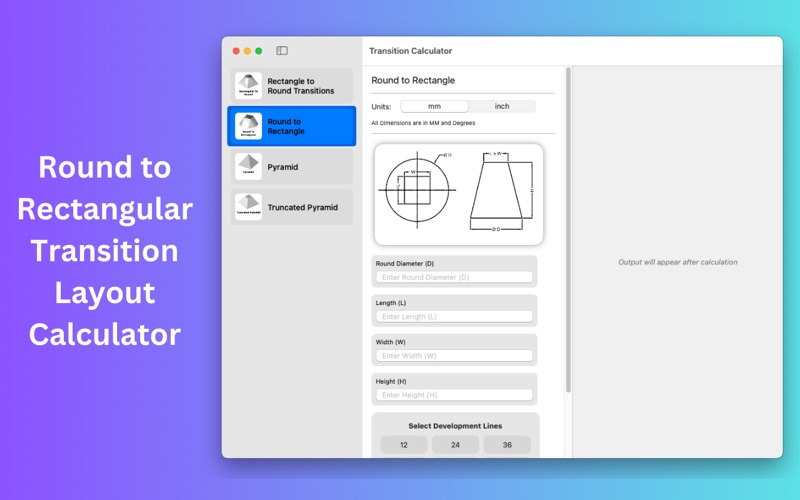

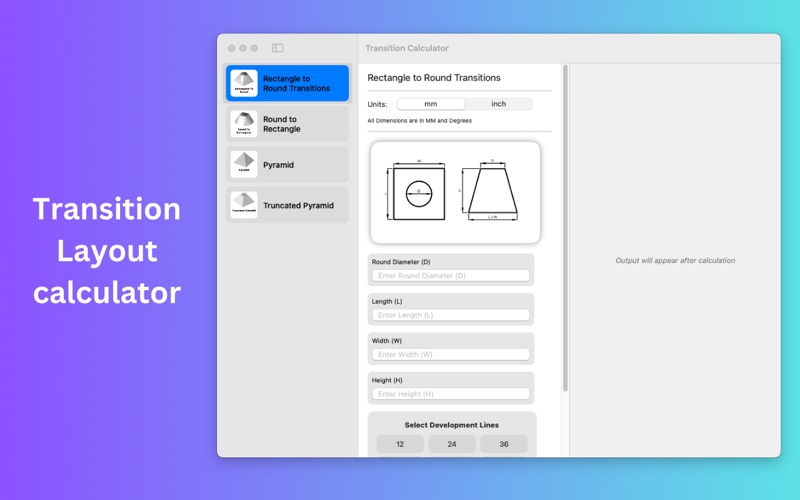

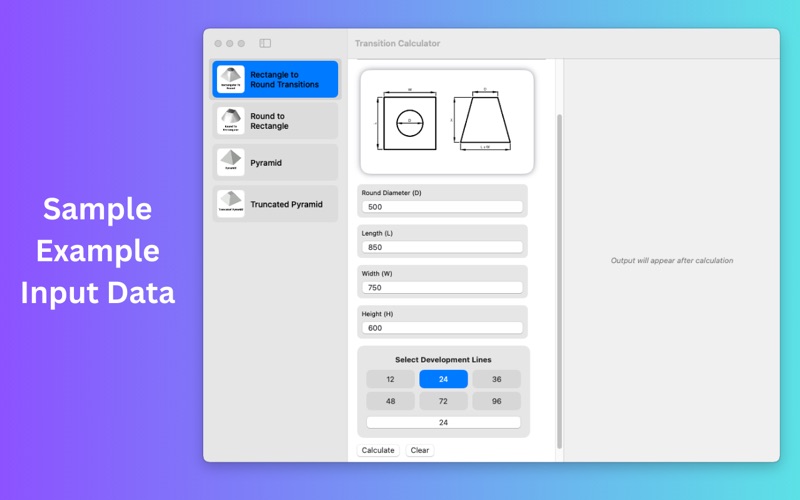

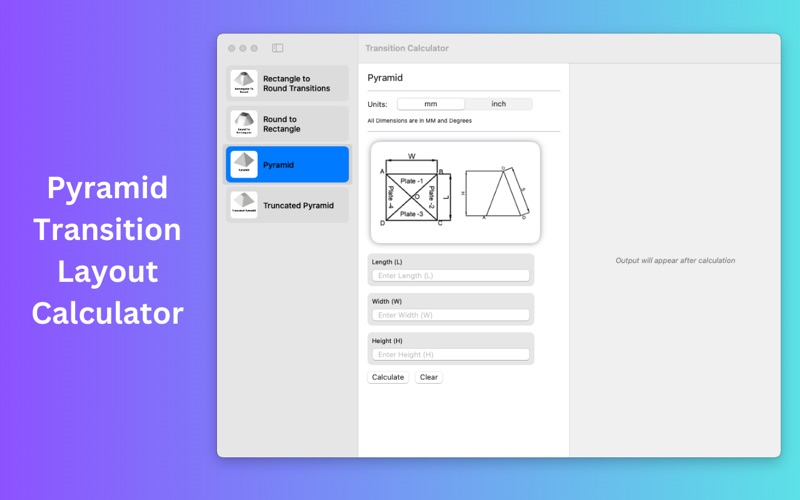

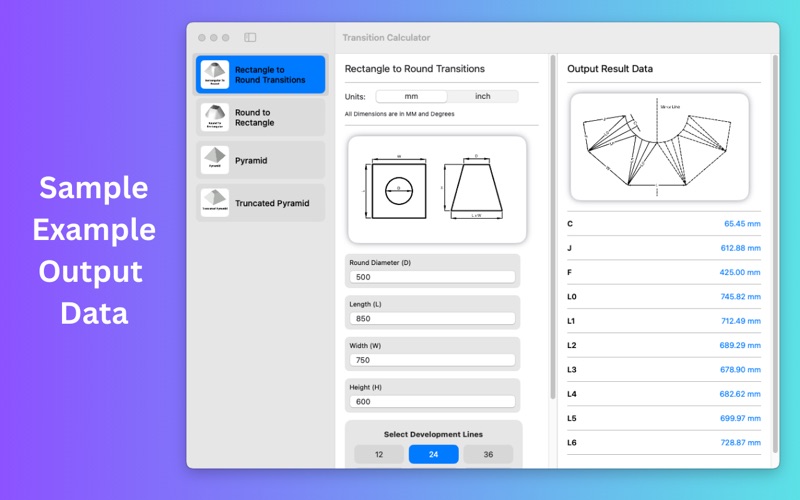

Transition Layout Calculator is a professional fabrication tool used to develop layout patterns for square to round, rectangular to round, round to square, and round to rectangular transition pieces. The app is widely used in fabrication, HVAC, sheet metal, and process equipment manufacturing industries. This application helps generate accurate development layouts required for fabrication of transition pieces, pyramids, and truncated pyramids. It simplifies complex layout calculations and saves time during fabrication and drafting work. Available Layout Development Features: Square to Round Layout or Rectangular to Round Layout Round to Square Layout or Round to Rectangular Layout Pyramid Layout Development Truncated Pyramid Layout Development Development Options: 1 Part or 1 Joint Layout 2 Part or 2 Joint Layout 4 Part or 4 Joint Layout Line Division Options: 12 Line Development 24 Line Development 36 Line Development Square to Round or Rectangular to Round: Enter base square or rectangular dimensions and top round diameter. Select number of joints and line divisions to generate accurate transition layout based on fabrication requirements. Round to Square or Round to Rectangular: Enter round diameter and square or rectangular dimensions. Choose joints and line divisions to generate layout development suitable for fabrication. Pyramid Layout: Enter base length, width, and height of the pyramid. The app generates development layouts for pyramid plates used in fabrication. Truncated Pyramid Layout: Enter base length and width, top length and width, and height. The app generates accurate layouts for truncated pyramid fabrication. Key Features: Square to round and round to square transition development Rectangular to round and round to rectangular layouts Pyramid and truncated pyramid development Multiple joint and line division options Simple and professional interface Accurate layout generation for fabrication This app is useful for professionals working in fabrication shops, HVAC ducting, sheet metal fabrication, and process equipment manufacturing. Transition Layout Calculator is an essential tool for developing accurate fabrication layouts and transition pieces.
